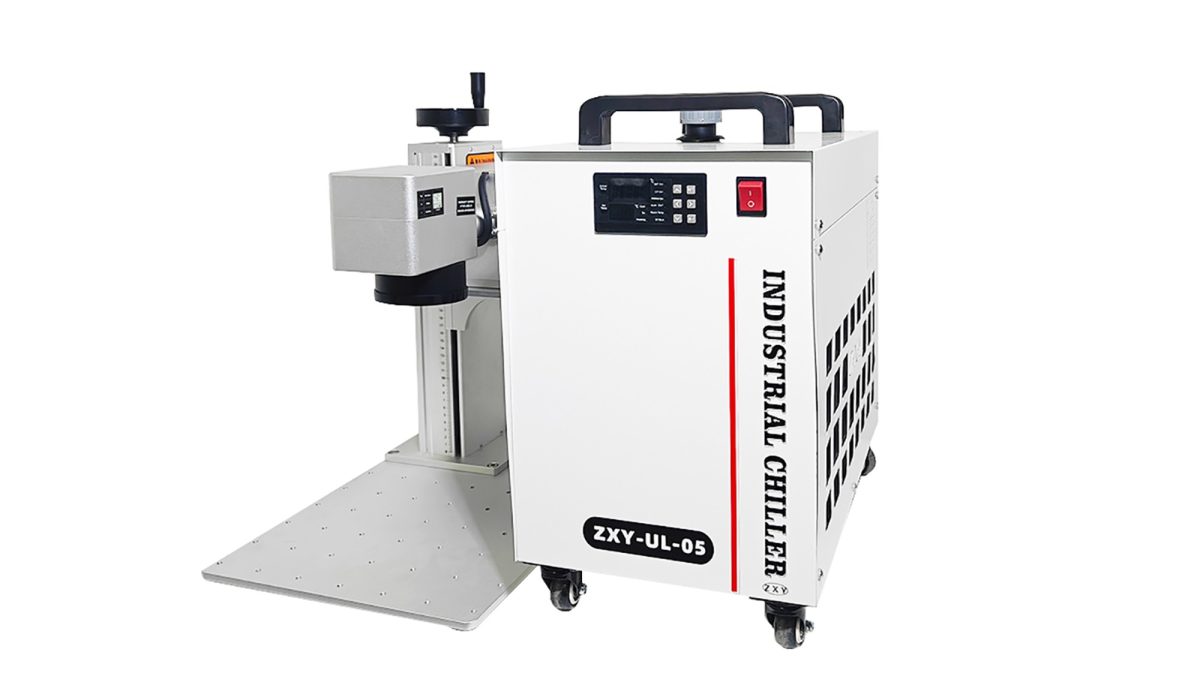

A 355nm UV laser marking machine is a cold-processing industrial marking system that uses 355nm ultraviolet wavelength laser source for ultra-fine, near-zero thermal damage permanent marking. Unlike traditional 1064nm fiber or 10.6μm CO2 laser systems that rely on thermal melting to form marks, this 355nm UV laser marking machine processes materials through high-energy photon photochemical ablation. It delivers extremely sharp, high-contrast marks on heat-sensitive, delicate materials that ordinary industrial lasers cannot handle safely.
This 355nm UV laser marking machine has become the standard marking solution for modern high-precision manufacturing industries. It is widely used in electronics, medical devices, cosmetics packaging, automotive precision parts and new energy battery sectors. In this full product guide, we break down its core working principle, key technical specifications, main material compatibility, typical industrial applications and unique performance advantages.
Core Working Principle of 355nm UV Laser Marking Machine
The 355nm ultraviolet wavelength photon carries much higher energy than near-infrared fiber laser photons. When the focused laser spot hits the material surface, it directly breaks the molecular bonds of the top material layer, instead of relying on continuous heat conduction to melt the material.
This non-thermal processing mechanism creates an extremely small heat-affected zone, usually below 10μm. There will be no obvious melting edge, no material deformation, no micro-cracks and no blackened burnt edge on the workpiece surface. This is the fundamental technical difference that makes a 355nm UV laser marking machine irreplaceable for marking delicate, heat-sensitive materials.
Key Technical Specifications
Every core optical component inside a professional 355nm UV laser marking machine is strictly optimized for 355nm wavelength. Generic UV laser systems that use general-purpose optical parts cannot deliver stable long-term performance.
表格
| Specification | Standard Industrial Grade Performance |
|---|---|
| Central Wavelength | 355nm ±1nm |
| Laser Output Power | 3W / 5W / 10W optional |
| Beam Quality M² | ≤1.1 |
| Minimum Line Width | 0.03mm |
| Repeat Position Accuracy | ±0.003mm |
| Maximum Marking Speed | Up to 10,000 mm/s |
| Standard Working Field | 110×110mm / 150×150mm optional |
| Cooling Method | Built-in constant temperature water circulation system |
| 24h Continuous Working Rating | Supported |
The M² beam quality value ≤1.1 is a critical threshold. Only when the beam quality reaches this level can the 355nm UV laser marking machine maintain ultra-fine spot and uniform marking effect across the entire working field.
Material Compatibility List
A 355nm UV laser marking machine performs reliably on a wide range of materials that ordinary industrial lasers struggle with.
- Plastic Series: ABS, PC, PVC, PP, PE, PPS and various engineering plastics
- Transparent Material Series: Glass, quartz, PET film, acrylic
- Electronic Material Series: Flexible PCB, silicon wafer, ceramic substrate, crystal oscillator
- Packaging Material Series: Cosmetics packaging bottle, medical plastic parts, food packaging film
- Special Coating Material Series: Anodized aluminum surface coating, paint layer, ink layer
This extremely wide material coverage makes a 355nm UV laser marking machine one of the most versatile high-precision marking systems on the modern industrial market.
7 Unique Product Advantages
- Ultra-Fine Marking Precision: Minimum character height can reach 0.3mm, easily marking tiny 2D codes and serial numbers on miniaturized parts.
- Near-Zero Thermal Damage: Almost no heat spread to surrounding areas, completely avoiding material deformation and micro-cracks.
- High Contrast Marking Effect: The marking result is clean and sharp, no yellowing, no blackening, no burr edge.
- Long Service Life: The UV laser source can reach more than 20,000 hours of stable working life.
- No Consumables Required: No ink, no solvent, no extra marking materials, zero running consumable cost.
- Environmentally Friendly Processing: No chemical waste, no pollution residue, meets strict industrial environmental protection requirements.
- Low Maintenance Design: Industrial-grade optical sealed structure, effectively preventing dust and smoke pollution from contaminating internal optical components.
Typical Industrial Applications
A 355nm UV laser marking machine is widely deployed in these high-precision manufacturing scenarios.
- Consumer electronics industry: Marking phone case logo, charging plug, data line connector
- Medical device industry: Marking disposable syringe, surgical tool, medical consumables UDI traceability code
- Cosmetics packaging industry: Marking transparent cosmetic bottle, plastic cap, product batch number
- PCB industry: Marking flexible FPC board, circuit board serial number, QR code
- New energy battery industry: Marking battery case, pole piece, safety component identification code
- Optical communication industry: Marking optical fiber connector, optical device, crystal resonator
Why Choose Shenzhen FLS Laser 355nm UV Laser Marking Machine
Shenzhen FLS Laser 355nm UV laser marking machine uses top-brand industrial UV laser source, high-precision galvo scanner and UV-optimized telecentric F-theta lens. All core components are strictly screened to ensure long-term stable performance.
We provide 2-year full machine warranty, lifetime technical support, free sample marking service and full English operation training. If you are looking for a reliable zero-damage high-precision marking solution for heat-sensitive materials, our 355nm UV laser marking machine will be your ideal choice.
Contact our engineering team today and send us your material sample — we will run a free full marking test and send you back high-resolution result photos and video.
