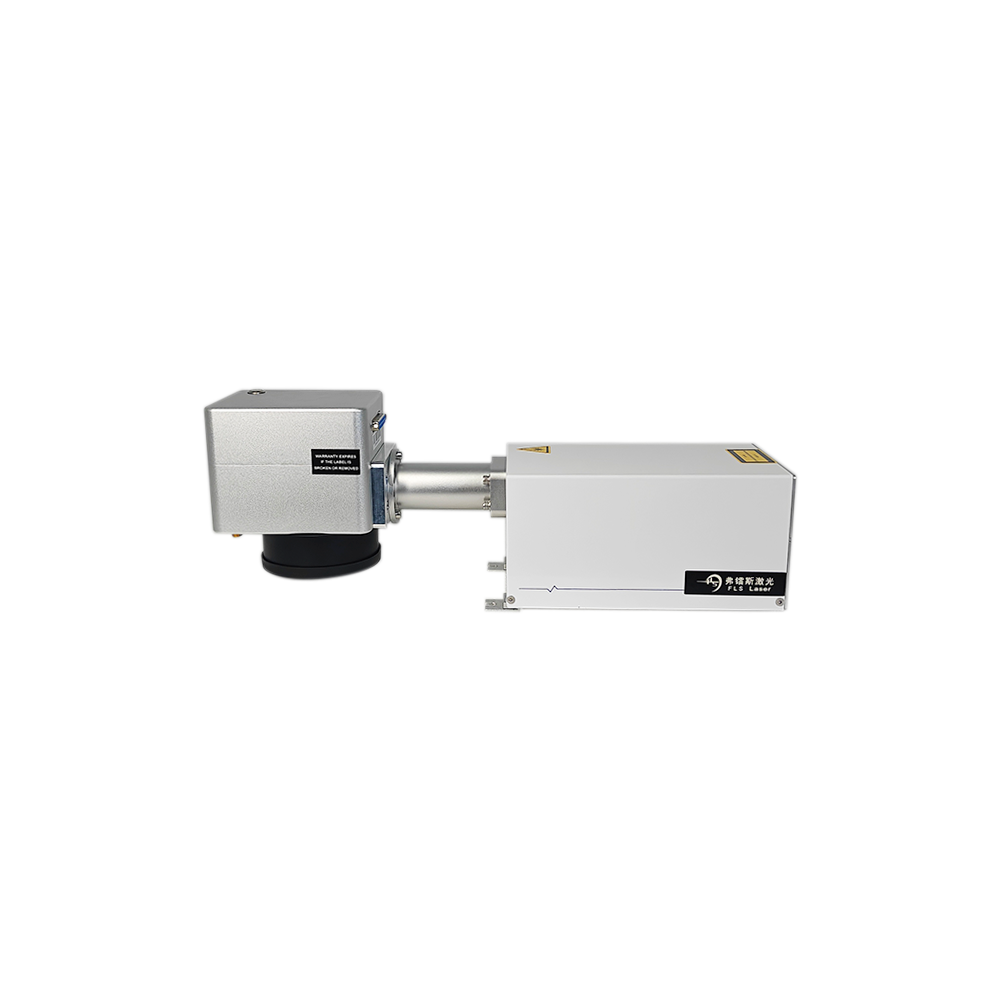

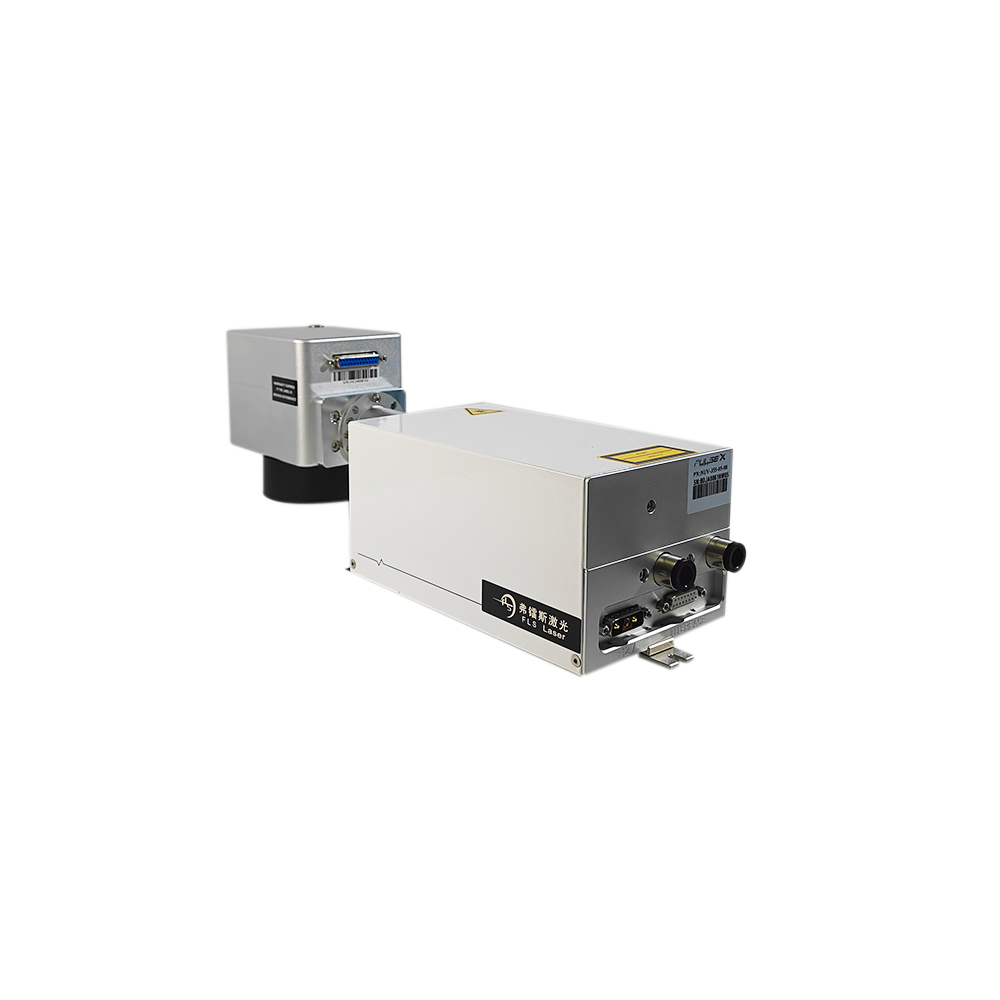

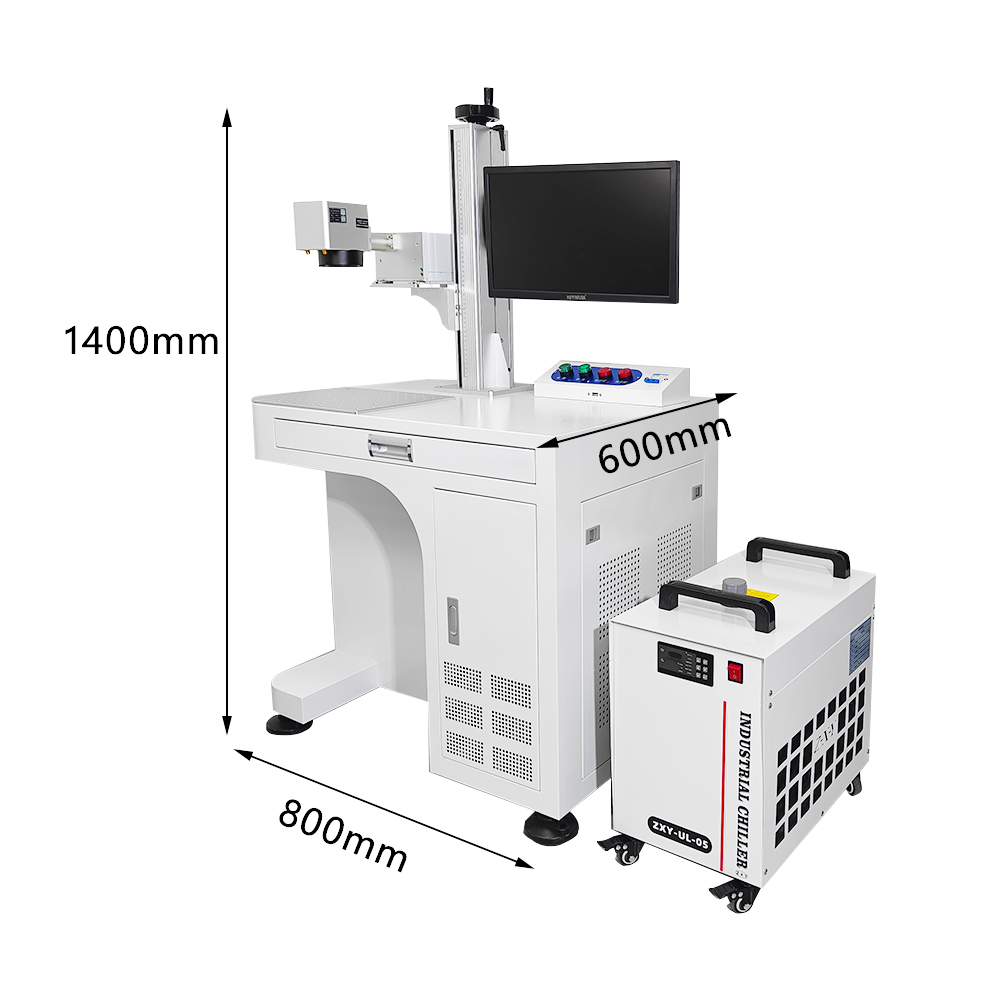

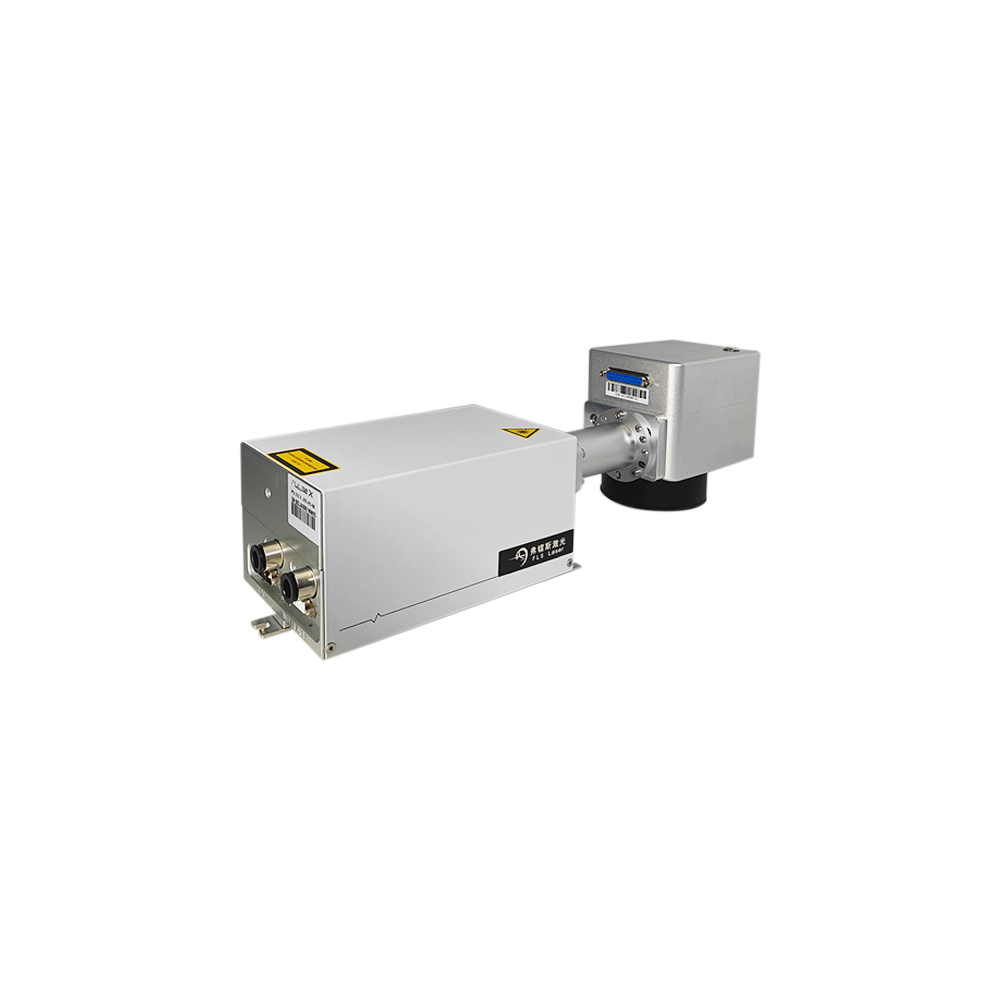

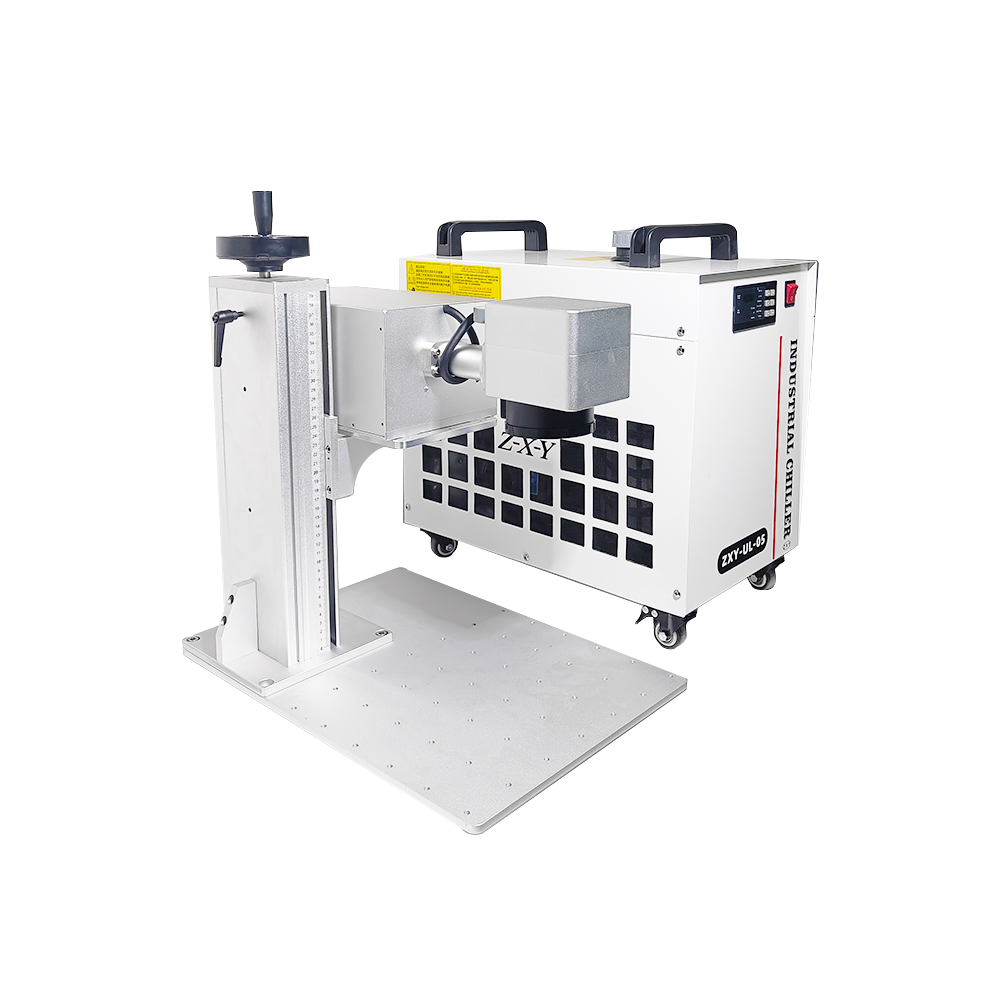

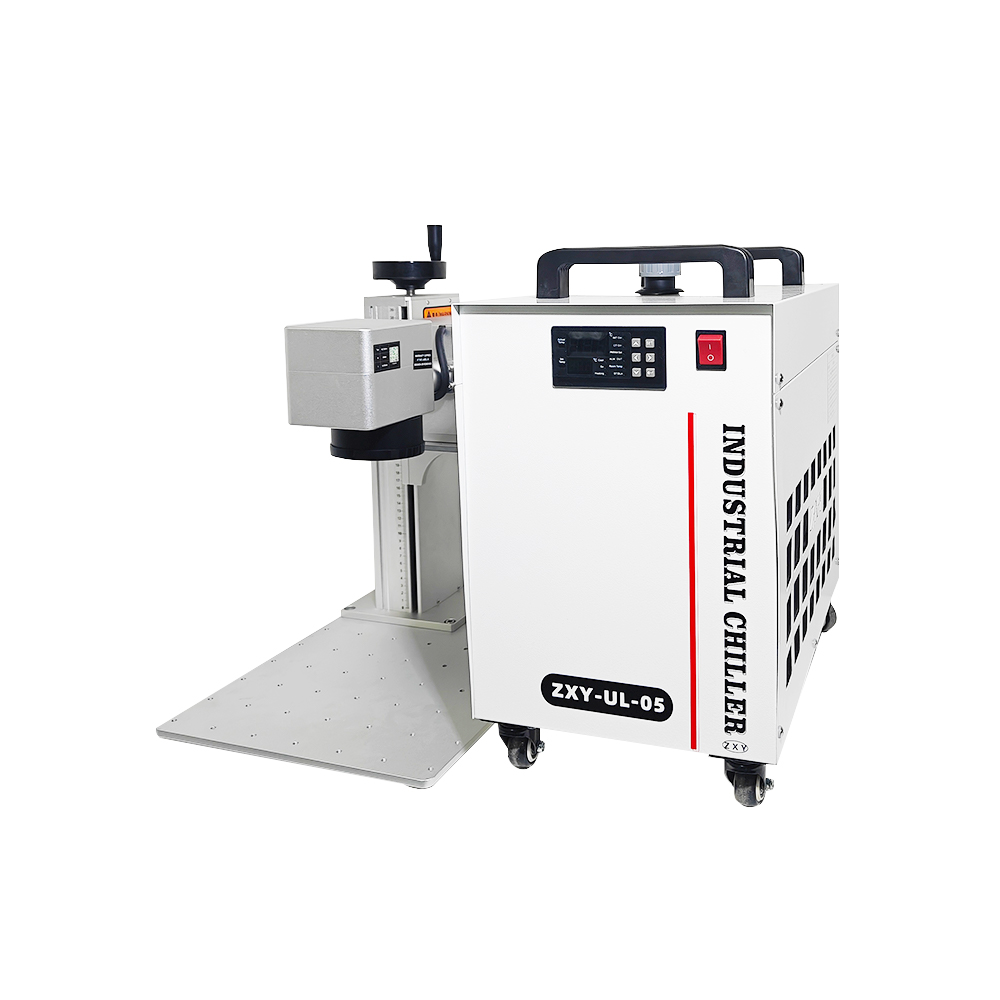

High Precision 355nm UV Laser Marking Machine
Power SupplyAC110V/60Hz and AC220V/50Hz global voltage compatible
| Parameter | Specification |
| Product Name | High Precision 355nm UV Laser Marking Machine / Industrial UV Laser Marking System |
| Laser Type | UV Laser, designed for high precision marking applications. |
| Wavelength | 355nm |
| Laser Power | 5W / 10W / 15W / 20W / 30W |
| Processing Technology | Cold laser processing with no heat affected zone, suitable for sensitive materials |
| Marking Speed | ≤7000mm/s High-speed processing capability |
| Repositioning Accuracy | ±0.01mm High precision Standard |
| Minimum Character | 0.2mm |
| Minimum Line Width | 10-60μm |
| Beam Quality | M²≤1.3 |
| Working Area | 50×50mm / 100×100mm / 150×150mm / 200×200mm |
| Positioning System | Red Light Preview Positioning, with optional CCD visual positioning. |
| Control System | Professional laser control software, supporting marking of texts, graphics, QR codes and barcodes. |
| Automation Integration | Supports MES, Database, PLC and production line integration |
| Power Supply | AC110V/60Hz and AC220V/50Hz global voltage compatible |
| Continuous Operation | 24 hours industrial continuous operation |
1. Product Advantages
High Precision UV Laser Marking Machine for micro marking and fine engraving applications.
355nm UV Laser provides cold processing with low heat influence for plastics, PCB and glass.
Industrial UV Laser Marking System suitable for electronics, medical and precision manufacturing.
Supports UV Laser Engraving and UV Laser Etching applications.
Compatible with CCD vision positioning and automated production systems.
2.Product Description
The FLS high-precision 355 nm UV marking machine is an industrial marking system developed for electronics, consumer electronics, PCB/FPC, medical devices, packaging and precision manufacturing industries. It leverages 355 nm UV laser technology to produce high-definition, high-contrast, permanent laser marks via cold processing.
3. Applications & Processable Materials
Applications: Consumer Electronics, PCB/FPC, Semiconductor Components, Medical Devices, Plastics, Glass, Ceramic, Packaging and Jewelry.
Materials: ABS, PC, PP, PE, PET, PVC, PBT, PA, Silicone, Rubber, Glass, Ceramic, Sapphire, PCB, FPC, Electronic Components and Films.
4. Simple Test Video
5. Case
