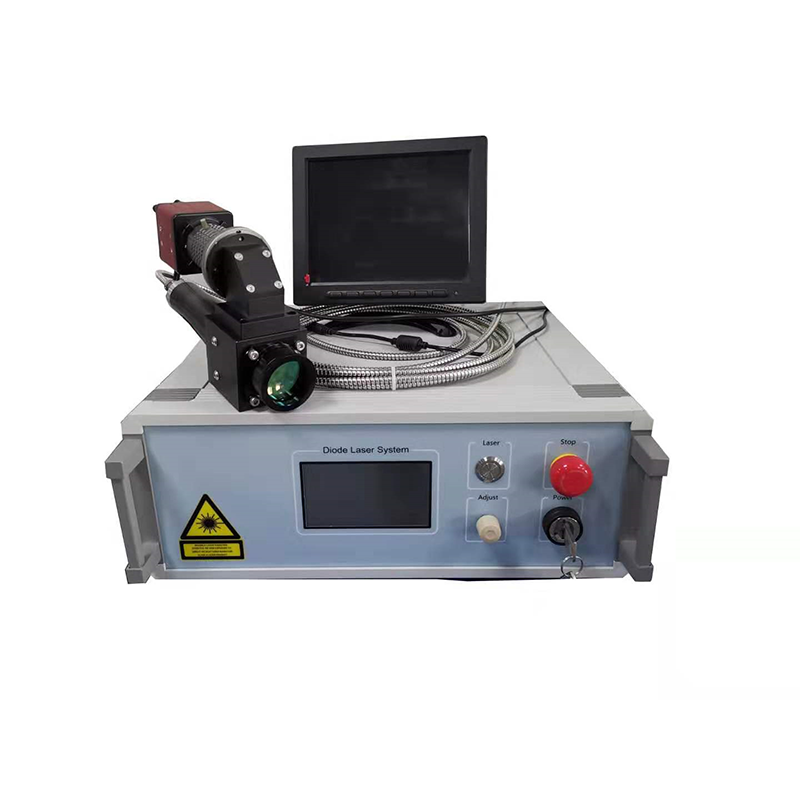

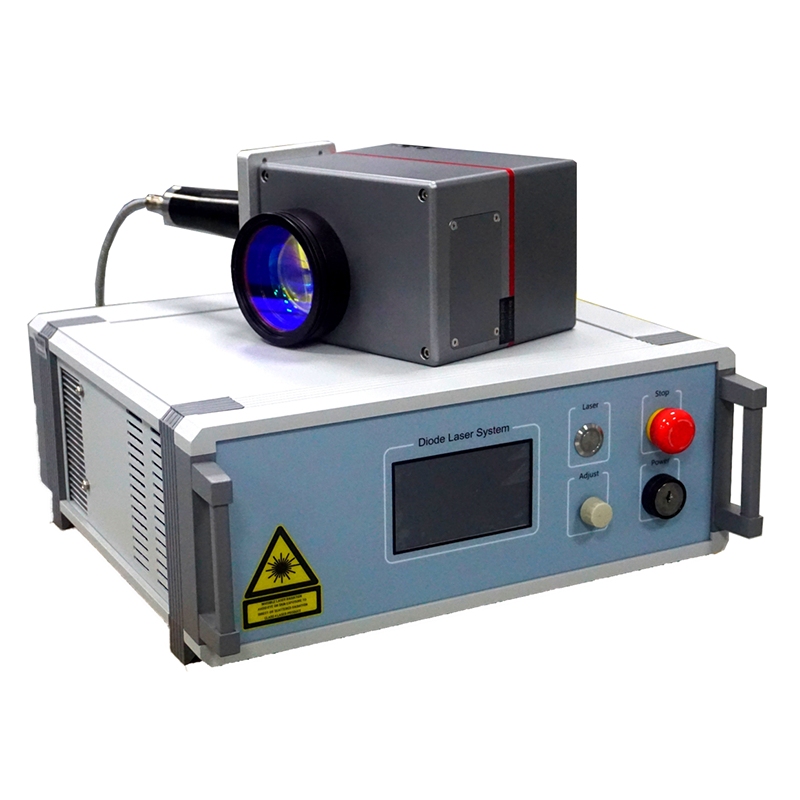

Laser Soldering Machine

Category 011 Laser Soldering Machines Tags Laser Soldering Equipment, Laser Soldering Machine, Precision Laser Soldering System

Item	Parameter
Laser Type	Semiconductor Laser Soldering System, independently developed and manufactured
Laser Wavelength	915nm / 980nm optional
Laser Power	100W / 150W / 200W / 300W / 500W / 1000W optional
Soldering Method	Non-contact laser soldering
Solder Material	Solder wire / solder paste
Welding Accuracy	≤0.02mm
Laser Spot Size	Adjustable laser spot size
Heating Speed	High-speed localized precision heating
Temperature Control	Optional real-time temperature monitoring system
Cooling System	Air cooling / water cooling optional
Control System	Industrial computer control system
Automation Method	Automatic solder feeding and production line integration
Power Supply	AC110V/220V 50/60Hz, compatible with global voltage standards

1. Product Introduction

The Laser Soldering Machine is a high-precision laser soldering device designed for the electronic manufacturing industry.

As a professional laser soldering machine, automatic laser soldering system, and precision laser soldering solution, it uses controlled laser energy for localized heating to achieve fast, stable, and clean soldering processes.

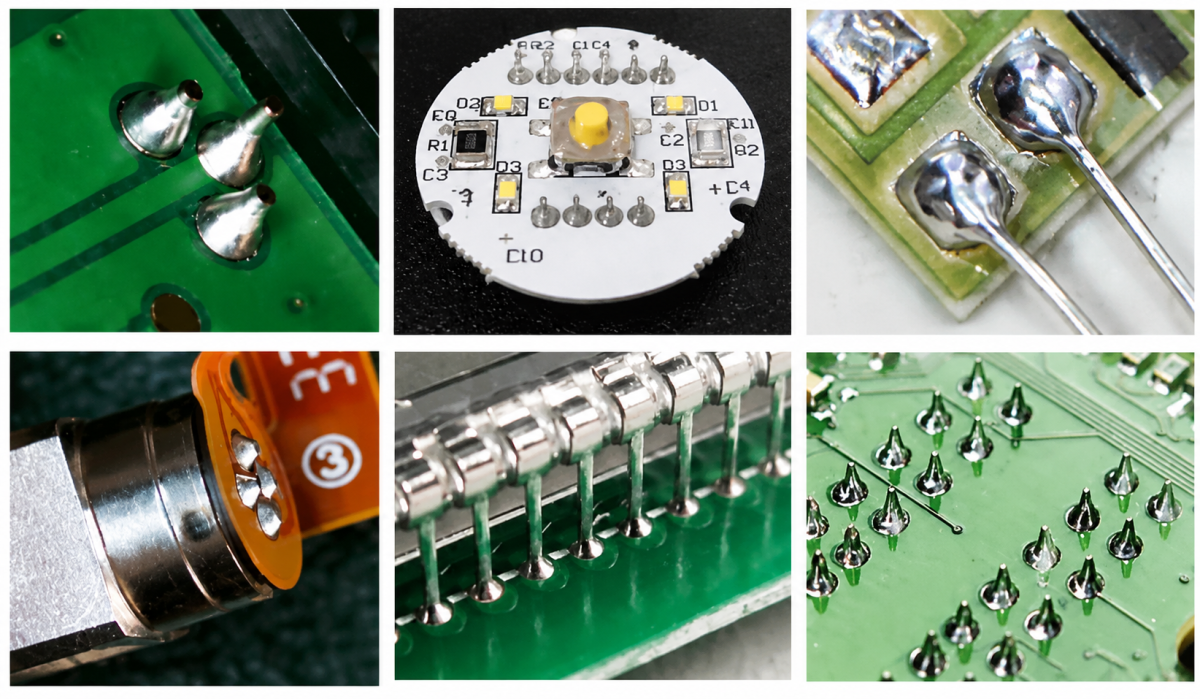

The equipment is widely used in PCB soldering, electronic component assembly, connector soldering, wire harness terminal soldering, battery tab welding, and microelectronic manufacturing.

Applications include automotive electronics, micro speakers, motors, connectors, cameras, PTH, PGA (Pin Grid Array devices), RFI connectors and other precision electronic products.

Suitable soldering materials include PCB and pin components, PCB and wire harnesses, FPC and pin components, and PCB pin soldering applications.

Widely applied in mobile phones, aerospace, medical electronics, automotive electronics and other industries.

2. Product Advantages

High-precision laser soldering: Accurate energy control suitable for miniature electronic components.
Non-contact processing: Reduces mechanical stress and improves product reliability.
Fast heating speed: Improves production efficiency.
Small heat affected zone: Protects surrounding sensitive components.
Automatic solder feeding: Suitable for automated mass production.
Clean soldering process: Reduces oxidation and improves consistency.

3. Application Industries

Electronics Industry: PCB circuit boards, connectors, electronic components.

Automotive Electronics: Sensors, wire harness terminals, automotive modules.

New Energy Industry: Battery tabs, battery components, power components.

Semiconductor Industry: Precision electronic packaging and micro components.

Medical Electronics: Medical equipment and precision electronic assemblies.

Consumer Electronics: Mobile phones, smart devices and compact electronic products.

4. Applicable Products and Materials

PCB, FPC, electronic components, connectors, terminals, wires, battery tabs, copper parts, nickel sheets, solder materials, semiconductor components and precision electronic assemblies.
