Laser Label Rewinding Machine

Parameter	Specification
Laser Type	UV Laser / Fiber Laser optional
Laser Power	5W / 10W / 15W / 20W
Laser Source	Self-developed laser source with high stability and long service life
Software	Self-developed laser marking control software supporting customized functions
Laser Wavelength	355nm UV Laser / 1064nm Fiber Laser
Marking Speed	Up to 7000 mm/s
Marking Accuracy	≤0.01 mm
Minimum Character Size	0.2 mm
Label Processing Function	Laser marking, laser coding, laser cutting, label die cutting and rewinding
Applicable Materials	PP labels, PET labels, PVC labels, PE labels, PI film labels, adhesive labels, thermal labels
Rewinding Speed	Up to 15 m/min
MES Integration	Support MES database connection, barcode traceability and production data management
Power Supply	AC 220V / 50Hz (customizable according to country requirements)
Machine Size	510×350×345mm / 730×410×420mm optional

1. Product Overview

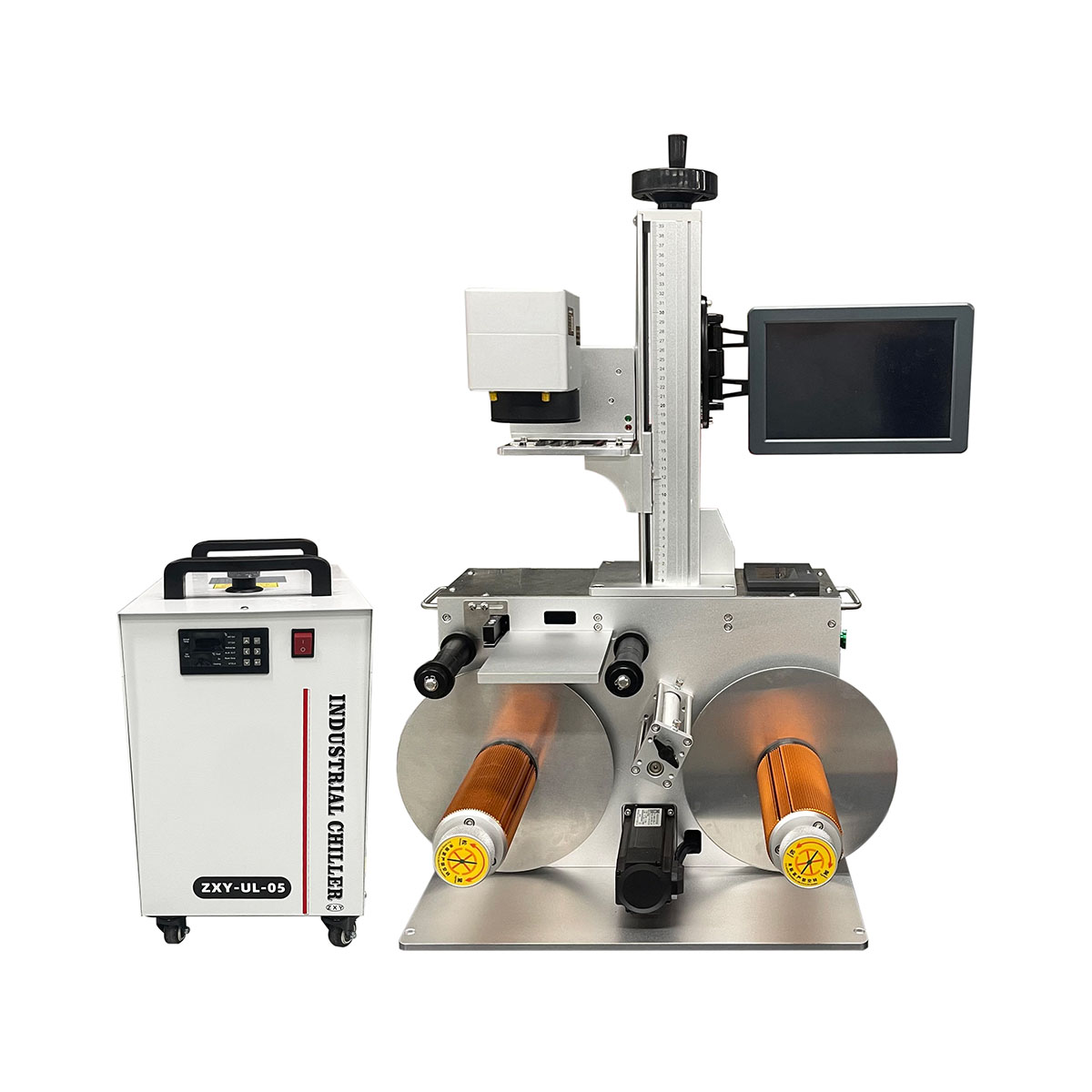

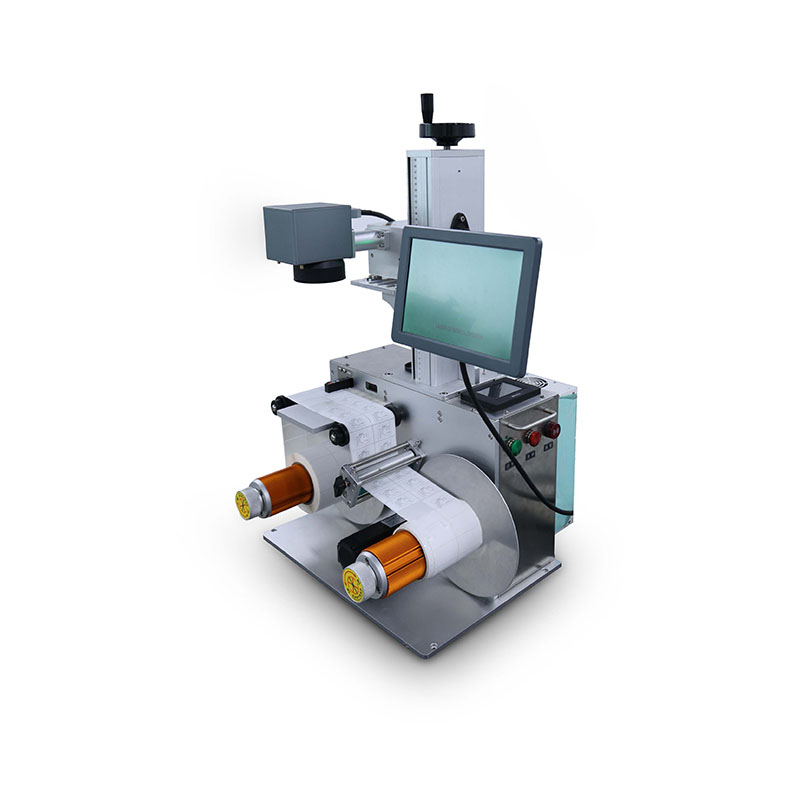

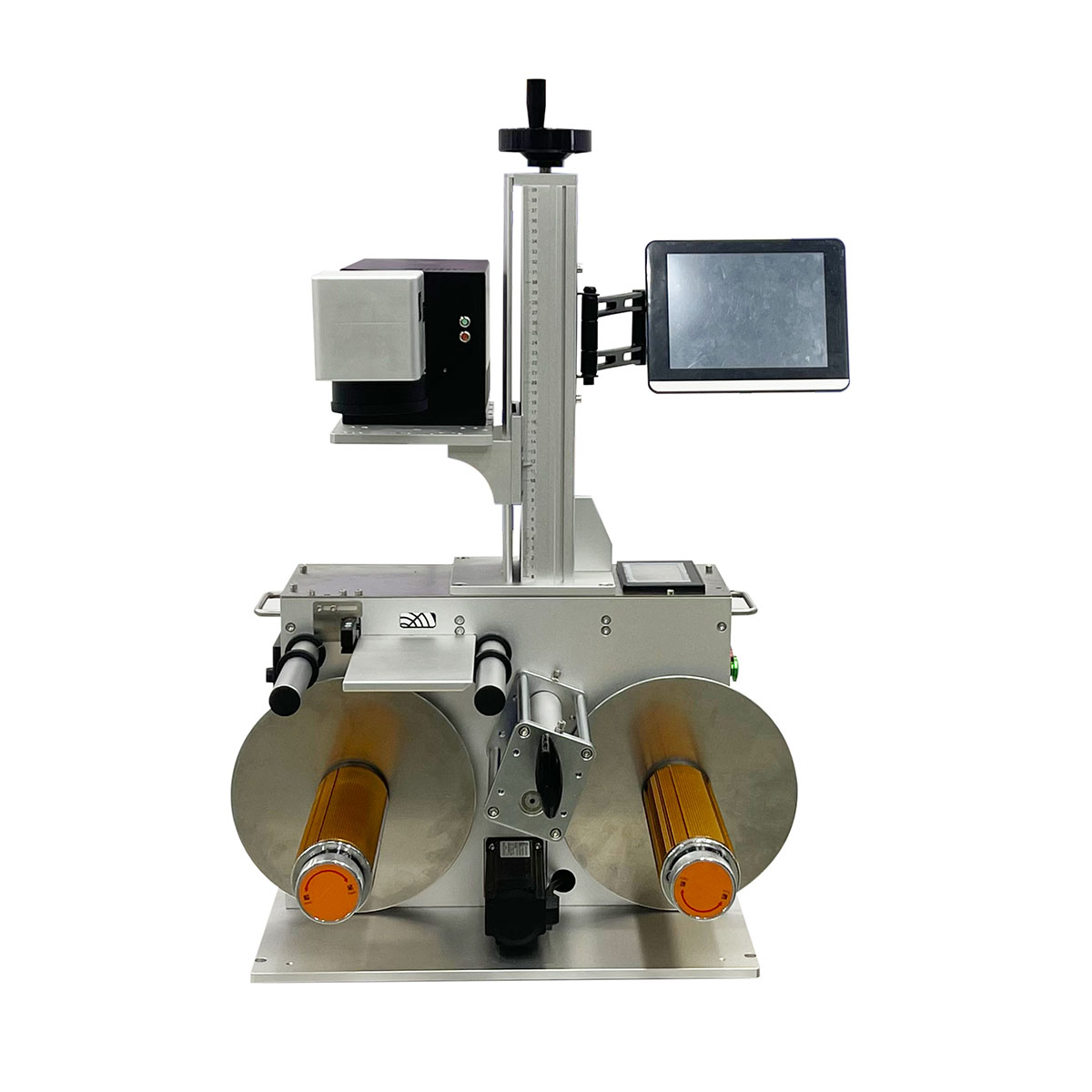

The FLS Label Laser Rewinding Machine is an integrated automatic label-processing system designed for high-speed automatic label production.
Combining laser marking, laser coding, laser cutting and rewinding functions, this equipment provides a complete solution for smart label manufacturing.

Equipped with self-developed laser sources and proprietary control software, this label laser marking machine creates permanent marks for QR codes, barcodes, serial numbers, texts and graphics.
Requiring no ink or carbon-ribbon consumables, it cuts long-term production costs.
Widely deployed for new-energy battery, medical, food packaging, automotive wiring harness, logistics , electronic product labels and other sectors.

2. Key Advantages

Integrates marking, cutting and rewinding to boost label automated production efficiency.
Permanent laser marking, zero consumables for lower long-term operating costs.
Self-developed software supports MES connection and smart manufacturing upgrades.
High-precision laser cutting for special-shaped labels and micro-processing applications.
Processes QR codes, barcodes, serial numbers and anti-counterfeiting traceability data.
Compact footprint, ideal for integration into automated production lines.

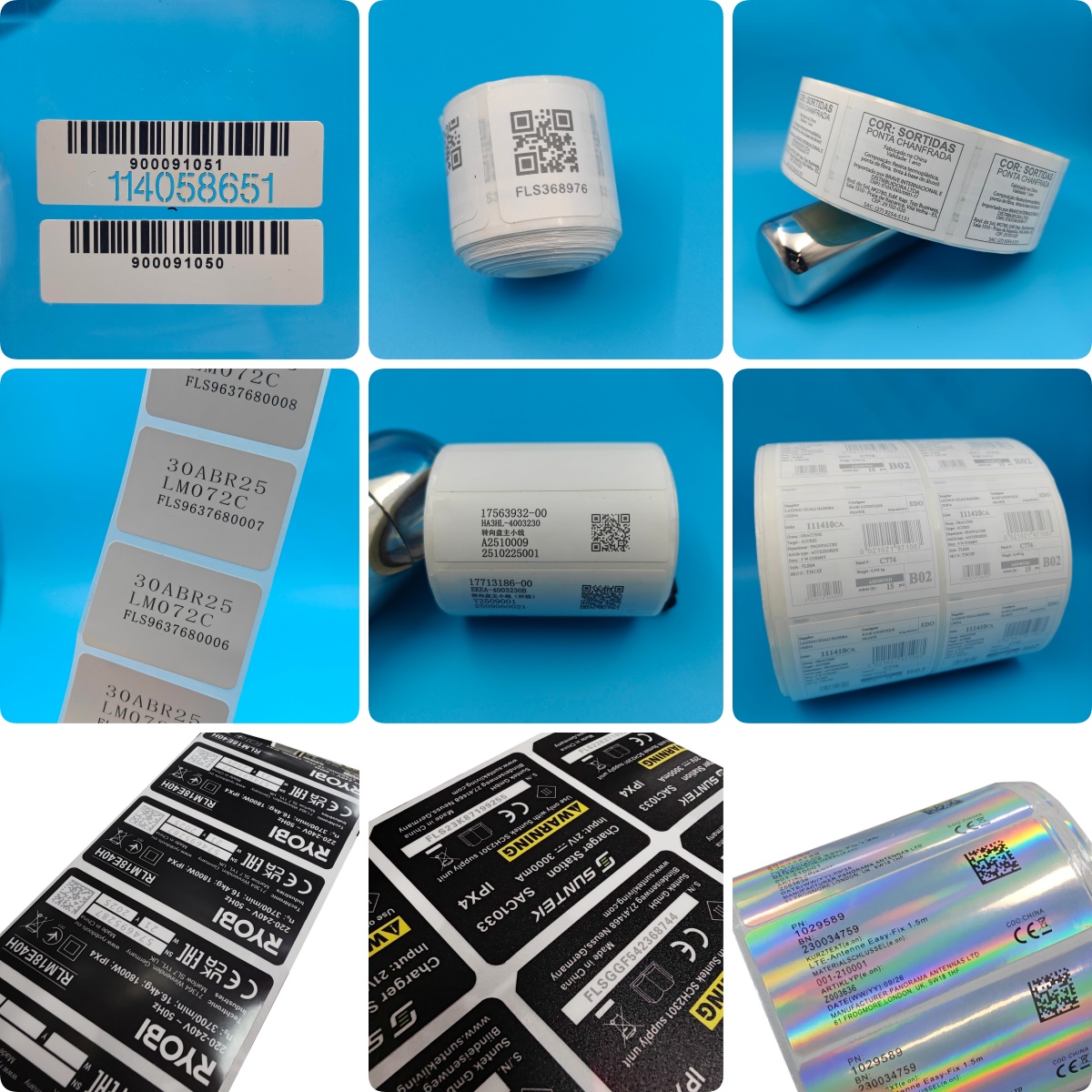

3. Application Industries

Battery labels, lithium battery labels, medical labels, pharmaceutical labels, food packaging labels, cosmetic labels,
automotive wire harness labels, logistics barcode labels, warehouse labels, electronics labels, PCB labels and industrial identification labels.
